SCP03MR

Rotating and folding cantilever workshop crane with removable counterweights 300 kg (side) and 500 kg (front)

SCP03MR

Rotating and folding cantilever workshop crane with removable counterweights 300 kg (side) and 500 kg (front)

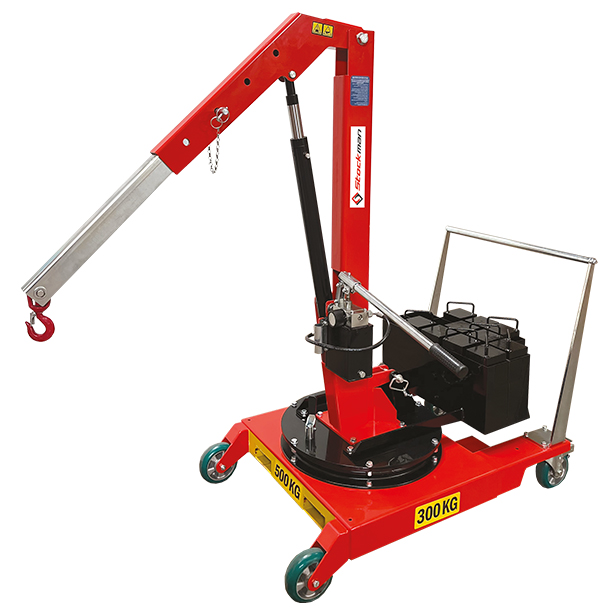

The SCP03MR cantilever workshop crane with rotating and folding mast is designed in Italy and distributed exclusively by Stockman. It offers a front lifting capacity of 500 kg and a side lifting capacity of 300 kg. Its versatile design and compactness, combined with quality workmanship, make it ideal for a variety of applications in manufacturing, maintenance, wineries, automotive workshops and construction.

more information

	Designation
	SCP03MR Rotating and folding cantilever workshop crane with removable counterweights 300 kg (side) and 500 kg (front) Weight : 528 kg Bar code : 3700664809458

DESCRIPTION

TECHNICAL CHARACTERISTICS

The SCP03MR cantilever workshop crane is a particularly versatile piece of workshop equipment. Its 360º rotating mast is foldable. This makes it easy to move around and reduces its footprint when not in use. A compact cantilever crane with a front load capacity of 500 kg and a side load capacity of 300 kg, it can lift loads in confined spaces. Advantages of the SCP03MR detachable counterweight workshop crane Unrivalled versatility: the SCP03MR crane, with its 500 kg front and 300 kg side lifting capacity, offers the versatility to meet a wide range of needs. Its design with rotating and folding mast, as well as its removable weights, enable it to handle a variety of loads in a multitude of professional contexts, such as construction sites. Italian craftsmanship: Made in Italy by Flex Lifting, the crane benefits from renowned manufacturing quality. The high standards it meets make it a safe and reliable investment for lifting operations. Optimized ease of use: manual crane movement combined with hydraulic lifting offers unrivalled ease of use. Operators can maneuver the crane with precision, without the need for a driver's license or CACES. This means maximum efficiency in the field. Compactness and maneuverability: the fully foldable crane measures just 1157 mm high when folded. This compactness ensures excellent maneuverability in tight spaces. It is also easy to move with a forklift truck. The chassis is equipped with fork pockets. Capacities and counterweights: Please note that the residual capacities of the SCP03MR crane vary according to the position of the hook (boom extension), the frontal or lateral lifting of the load and the number of removable counterweights. Before using the crane for the first time, please refer to the technical data sheet to check that the load to be lifted corresponds to the sum of these parameters. A demonstration video is also available. Wheels: Equipped with 4 super-elastic 160 mm diameter wheels for optimized handling and operational performance. 360° rotating mast with extendable boom: The 360° rotating mast offers total freedom of movement. Operators can position the load with optimum precision. The boom can be extended to four positions, and is manually adjustable. Adaptability is enhanced for a variety of applications. Thirteen removable weights of 23 kg: Equipped with thirteen removable weights of 23 kg each, the crane's lifting capacity can be adjusted to suit the specific needs of the operation. Delivery with hook included: The crane is equipped with a hook as standard, guaranteeing a secure grip on loads. This ready-to-use feature adds immediate practical value to the equipment. SCP03MR crane technical specifications
Maximum capacity folded arm front lift: 500 kg
Maximum capacity folded arm side lift: 300 kg
Maximum capacity extended arm with standard jib front lift: 160 kg
Maximum capacity extended arm with standard jib side lift: 96 kg
Mast type: rotating and folding
Number of removable counterweights: 13
Maximum overhang with standard jib front / side : 1270 mm / 1389 mm
Displacement: manual
Lifting and lowering: manual
Extension: manual
Jib control: quick-lift pump and crank for lowering
Overall dimensions with folded jib in front position (L x W x H): 1365 mm x 779 mm x 1157 mm
Extension available with standard mini/maxi jib: 365 mm / 1270 mm
Weight without counterweights: 229 kg

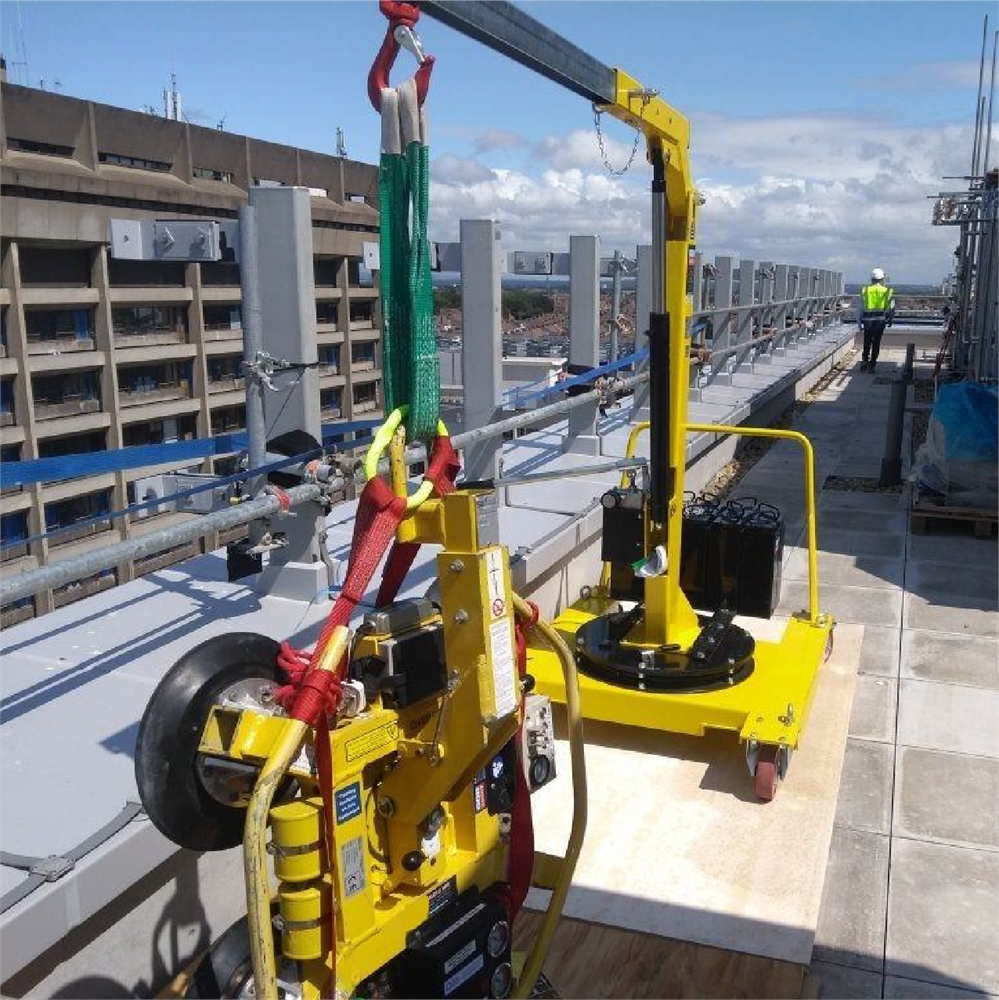

Weight: 528 kg Typical SCP03MR crane applications : Industry: Construction site Problem encountered by operators: Need to lift prefabricated elements for construction. Solution provided by the SCP03MR workshop crane: Compact counterweight crane with manual lifting for precise installation of elements. Sector: Winery Problem encountered by operators: Limited space management in the winery. Solution provided by the SCP03MR crane: Compact crane adapted to restricted spaces for increased maneuverability. Sector of activity: manufacturing workshop Problem encountered by operators: Frequent assembly and disassembly of heavy components. SCP03MR crane solution: Crane with removable counterweights to facilitate assembly and disassembly operations. Sector of activity: Industrial maintenance Problem encountered by operators: Need to move heavy machines for maintenance. SCP03MR workshop crane solution: Counterweight crane for easy movement of industrial equipment. Business sector: Car garage Problem encountered by operators: Risk of damage to vehicles during lifting operations. Solution provided by the SCP03MR workshop crane: Use of counterweights to ensure stability and prevent damage to vehicles.
