ATLAS

Motorized counterbalance shop crane 1000 kg up to 3 m extension

ATLAS

Motorized counterbalance shop crane 1000 kg up to 3 m extension

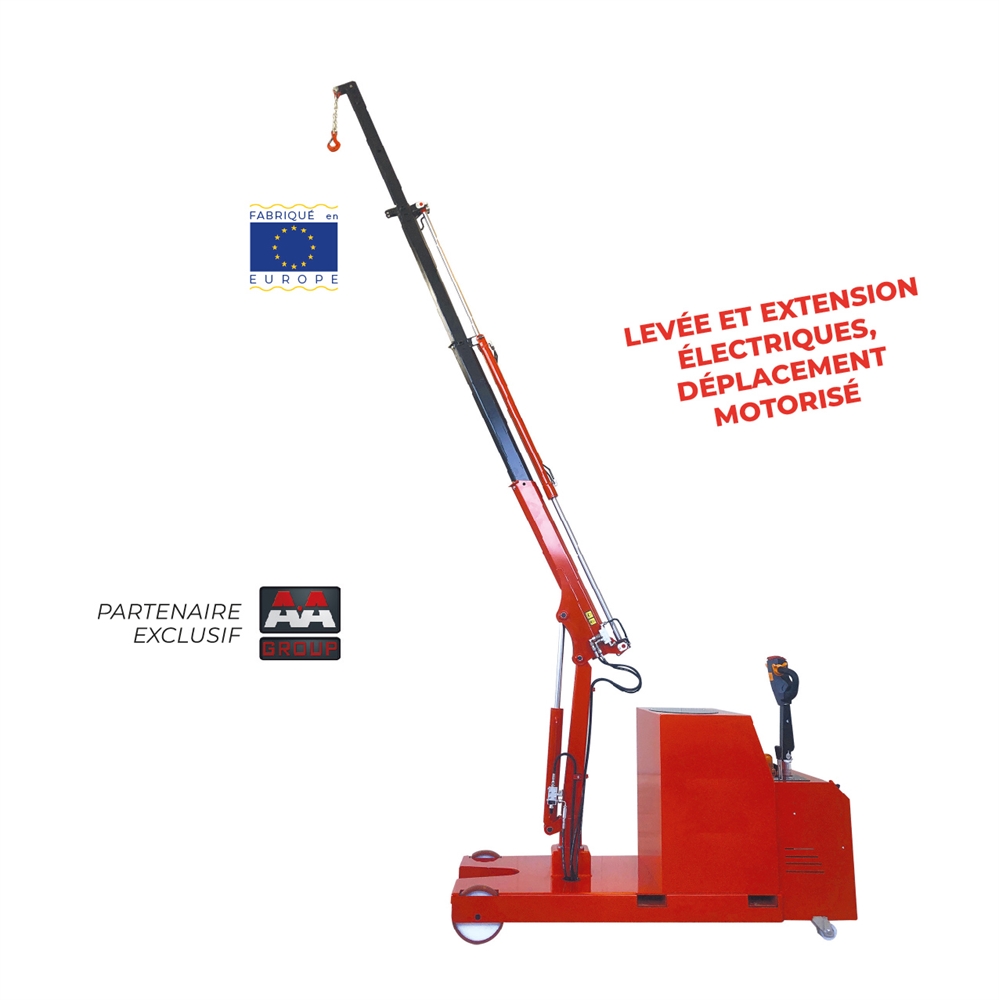

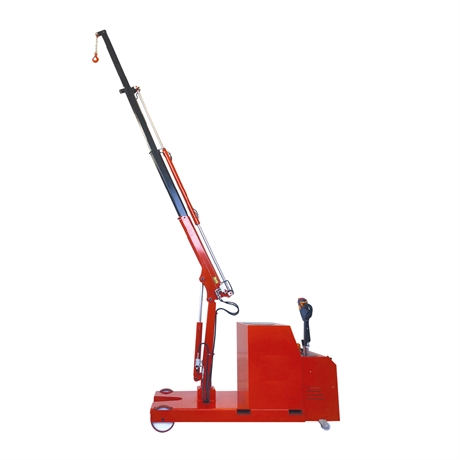

The ATLAS motorized rotating cantilever workshop crane is a lifting device with an arm extension of up to 3 meters. This workshop crane is fully electrically powered: movement, rotation, lifting and lowering of the arm. Its maximum admissible capacity is 1000 kg. Made in Italy, its arm is activated by lever (ATLAS1TE3) or remote control (ATLAS1TE3R).

more information

	Designation

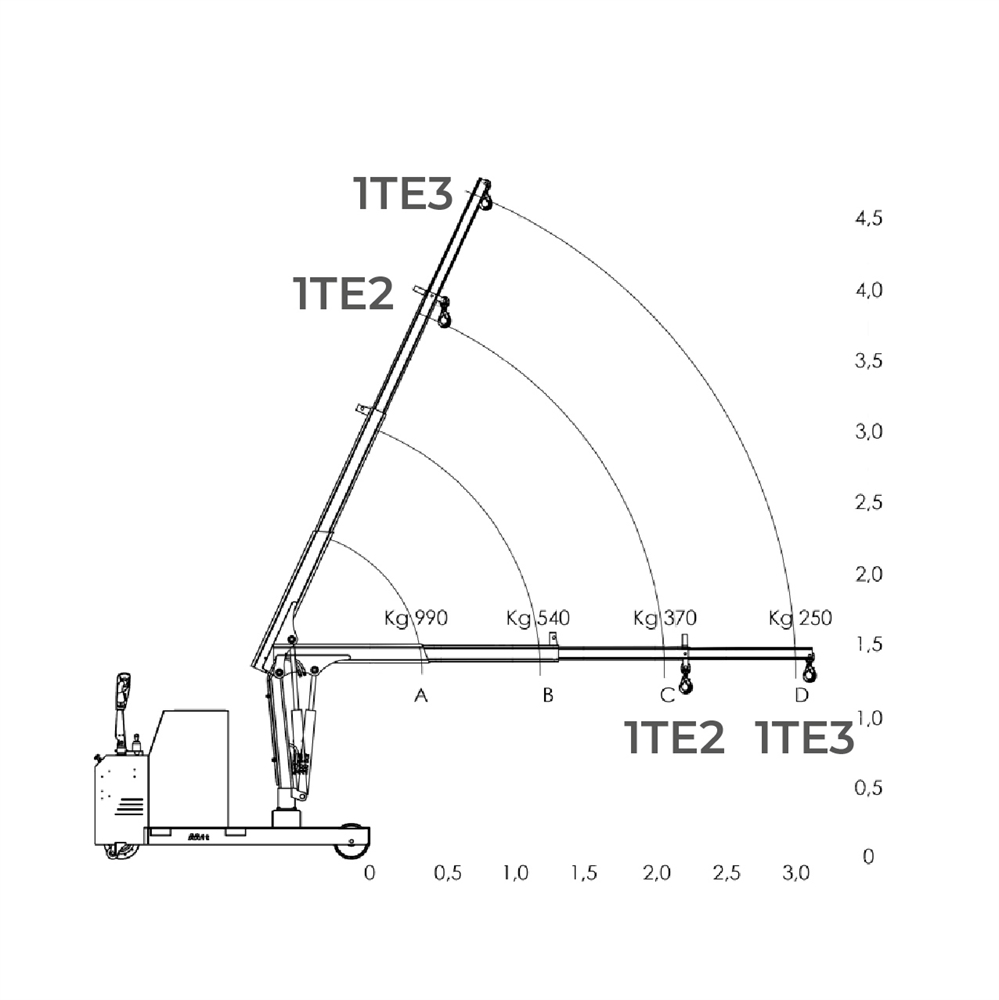

	ATLAS1TE3 Motorized counterbalance shop crane 1000 kg up to 3 m max. charge to max. extension 370 kg Weight : 1600 kg Bar code : 3700664807799 Catalogue P.303
	ATLAS1TE3R Motorized counterbalance shop crane 1000 kg up to 3 m max. charge to max. extension 370 kg Weight : 1600 kg Bar code : 3700664811222 Catalogue P.303

DESCRIPTION

TECHNICAL CHARACTERISTICS

The ATLAS motorized cantilever workshop crane is a premium piece of Italian-made lifting equipment
Stockman is the exclusive distributor of this ergonomic lifting equipment.
This workshop crane is fully electric: movement, rotation of the mast, raising and lowering of the jib. Its design makes it ideal for industrial lifting, with a maximum load capacity of 1000 kg and a jib that can be extended up to 3 m. Please consult the technical documentation to check the crane's residual capacities. Two models are available, the only difference being that the arm and mast are operated by remote control (ATLAS1TE3R) or by lever (ATLAS1TE3).

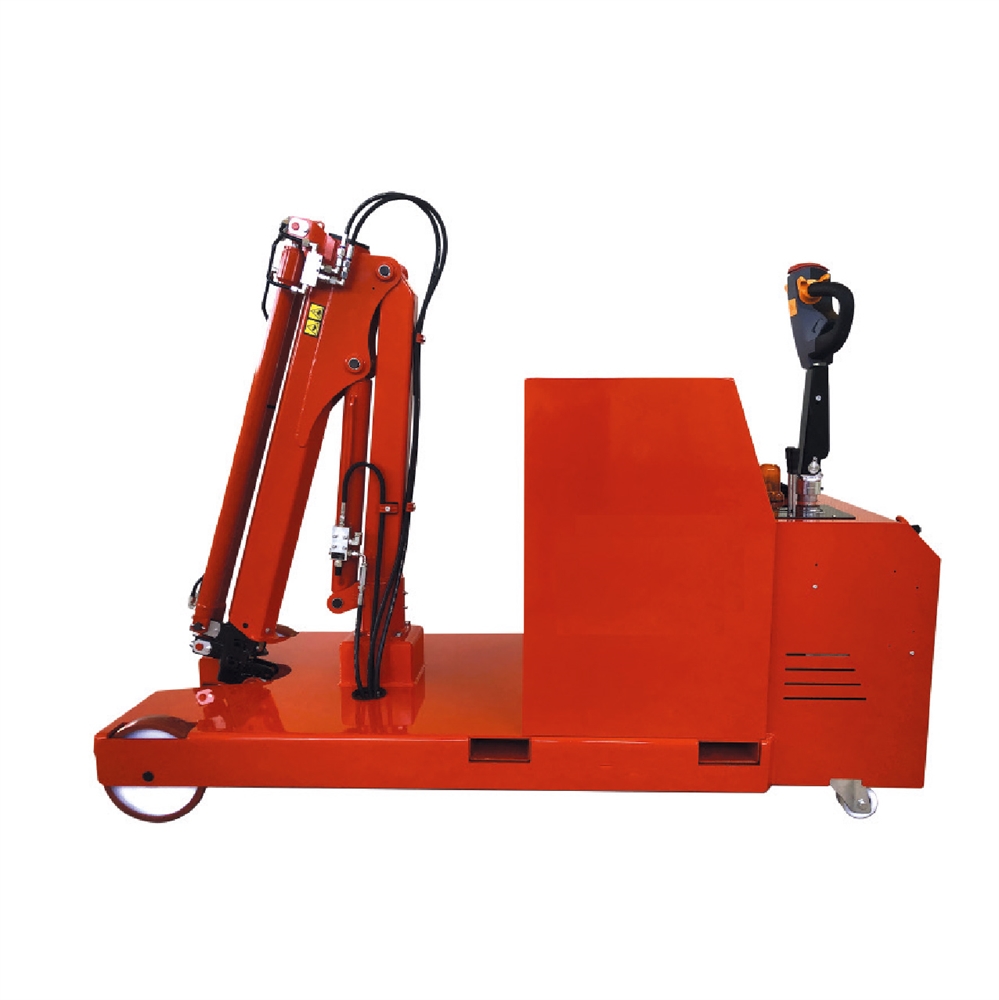

This workshop crane is particularly compact at just 800 mm wide.
Thanks to its extreme maneuverability, it can reach any space. It can be fitted with any type of under-hook accessory (vacuum lifting beam, bars, clamps, tippers, permanent magnets and customized solutions) for unlimited applications in a wide variety of industries.
The ATLAS cantilever crane is equipped with AGM batteries that can be recharged in areas with limited ventilation. Thanks to its cantilever concept, it's a ready-to-use lifting solution that requires no installation, as there's no need to install side stabilizers to lift a load.
This crane features a safety system that prevents the crane from being overloaded. This crane is equipped with a safety system to prevent overloading, high-quality driveability and exceptional steering angle
Automatic charge limiting device, waterproof AGM battery, integrated charger and anti-fall safety valve
Compliant with all safety standards, emergency stop, differential, buzzer, stop valve, etc.

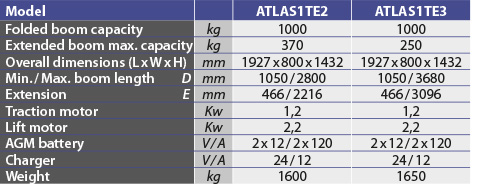

More technical information in the downloadable data sheet.

Documentation

Data sheet
