SCF1000D

Motorized overhung workshop crane with fixed mast and double electric extension 1000 kg

SCF1000D

Motorized overhung workshop crane with fixed mast and double electric extension 1000 kg

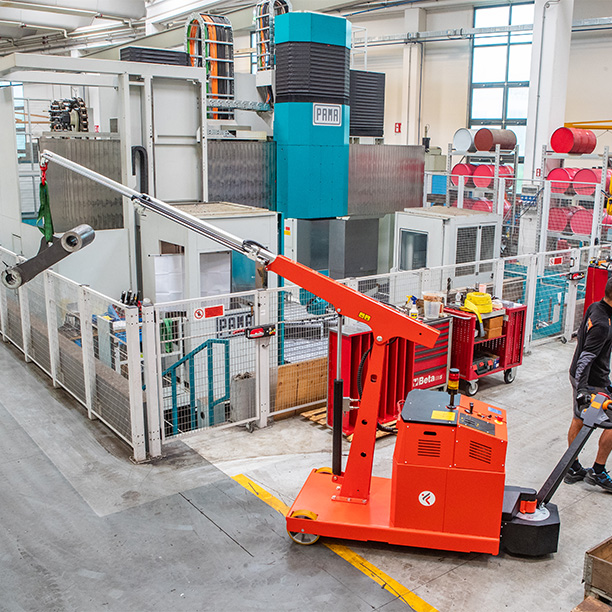

The SCF1000D motorized workshop crane is an advanced electric solution for industrial lifting. It features a double electric extension for a 2500 mm overhang and a maximum lifting height of 3905 mm. This crane can handle loads of up to 1000 kg.

more information

	Designation
	SCF1000DBL Motorized cantilever workshop crane with fixed mast, electric lift and double extension, lever control 1000 kg Weight : 1600 kg Bar code : 3700664811192
	SCF1000DBR Motorized cantilever workshop crane with fixed mast, electric lift and double extension, remote control 1000 kg Weight : 1600 kg Bar code : 3700664811321

DESCRIPTION

TECHNICAL CHARACTERISTICS

The SCF1000D motorized fixed-mast workshop crane is a powerful electric lifting solution, capable of lifting up to 1000 kg. With a double electric extension for a 2500 mm overhang and a maximum lifting height of 3905 mm, this crane is suitable for environments involving extended reach and increased lifting of very heavy loads. Designed for exceptional maneuverability, the SCF1000D crane enables efficient use in a variety of industrial contexts without the need for stabilizers.
2 models are available: the SCF1000DBL crane is equipped with progressive speed levers to control its jib. The arm of the SCF1000DBR model is controlled by a wireless remote control with progressive speed.
For simple boom extension, see models SCF1000SBL and SCF1000SBR (1400 mm overhang instead of 2500 mm, and 2986 mm maximum lift height instead of 3905 mm).
The levers, like the remote control, activate the following functions: lifting, lowering, extending and retracting the boom.

Advantages of the SCF1000D fixed-mast motorized workshop crane
Enhanced flexibility: the SCF1000D motorized cantilever crane features a double electric extension, allowing a 2,500 mm overhang. This feature is ideal for industries or work environments involving extensive horizontal movements. The double electric extension of the motorized crane facilitates access to complex or congested areas without having to move the crane base.
Increased lift height: With a maximum lift height of 3905 mm, this workshop crane is perfect for handling tasks requiring higher lifts. It offers increased capacity for overhead lifting operations, which is essential for complex industrial installations.
Ergonomic operations: the SCF1000D is designed to improve ergonomics in the workplace. The arm can be operated either by lever (model SCF1000DBL) or by remote control (model SCF1000DBR). The result is real flexibility of use and reduced operator fatigue.
Enhanced safety: Thanks to its dynamic load limiting system, this motorized crane prevents overloading and guarantees safe operations. This not only protects operators, but also the lifting equipment itself.
Operational versatility: Designed for a wide range of applications, the SCF1000D cantilever crane can be used in a variety of workstations, from workshops to assembly lines. Its outrigger-free mobility means it can be used in tight industrial spaces.
Positioning accuracy: The SCF1000D motorized fixed-mast crane, with its progressive speed control, ensures precise positioning of loads. This feature is crucial when handling delicate components or machine parts, and guarantees precise and safe installation.
Mobility and manoeuvrability: The stabilizer-free design of this double-extension electric workshop crane allows maximum mobility, making it easy to move between different work points without complex readjustments. The SCF1000D compact mobile crane is an ideal solution for workshops requiring rapid and frequent positioning changes.

Technical features of the SCF1000D motorized workshop crane
Maximum capacity: 1000 kg
Mast: Fixed
Maximum overhang: 2500 mm
Maximum lifting height: 3905 mm
Width: 780 mm
Weight: 1600 kg
Controls: Electric with progressive speed by levers for the SCF1000DBL crane or by remote control for the SCF1000DBR crane
Lifting: Electric with adjustable and progressive speed
Decreasing: Electric with adjustable and progressive speed
Extension: Double electric extension with adjustable and progressive speed

Here are some examples of industries where the motorized workshop crane with fixed mast and electric double extension is very useful
Manufacturing: Placement of molds and components over obstacles/barriers, with increased overhang to reach remote areas. The 2500 mm overhang of the SCF1000D crane addresses the difficulties of placing loads over obstacles in this sector's working environments.
Assembly lines: Precise, rapid movement of parts on production lines, with a higher lift height for more flexible operations. The progressive speed control of the SCF1000D crane (lever control or wireless remote control) meets the need for fast, precise movement of heavy parts.
Machine tool workshops: Handling loads in complex machines and narrow openings, with a longer extension for improved accessibility. The 780 mm width of the SCF1000D crane enables loads to be handled in tight spaces.
Ergonomics and safety: Reduced risks for operators, improved working conditions and productivity thanks to optimized controls and enhanced ergonomics. The SCF1000D crane is an ergonomic piece of lifting equipment that reduces handling risks for operators. It makes work effortless and efficient.

Motorized overhung workshop crane with fixed mast and double electric extension 1000 kg

Motorized overhung workshop crane with fixed mast and double electric extension 1000 kg
