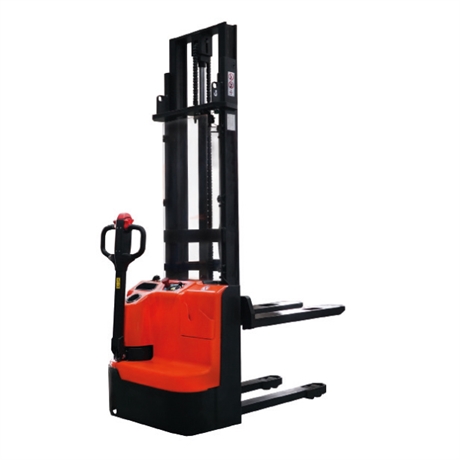

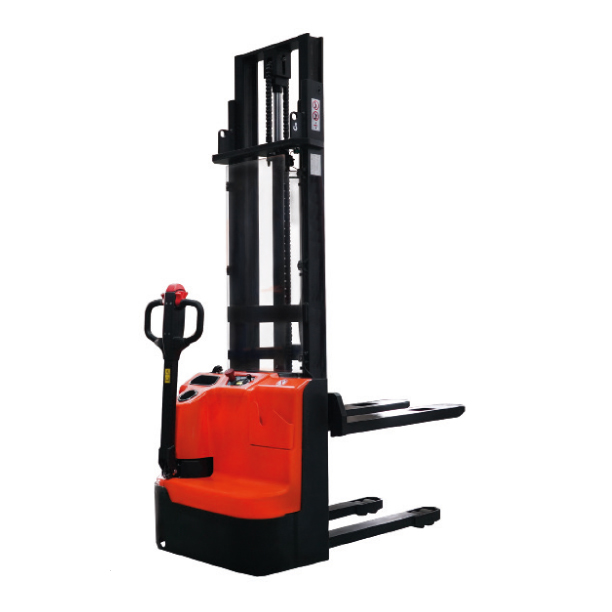

SECL15N

Electrical stacker with 1500 kg load capacity

SECL15N

Electrical stacker with 1500 kg load capacity

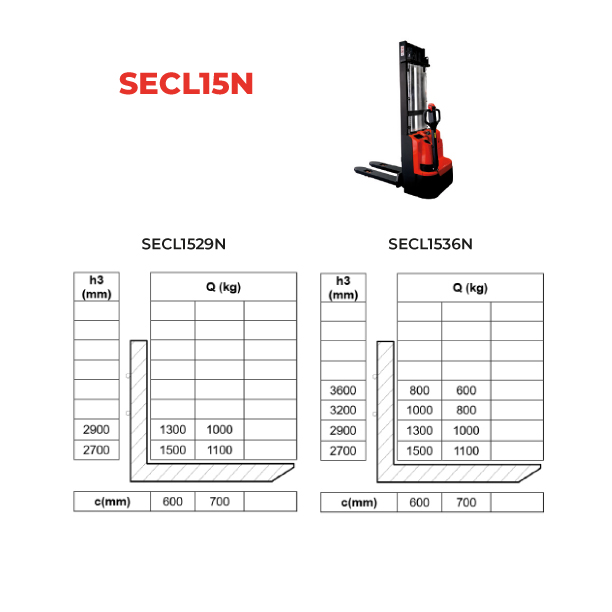

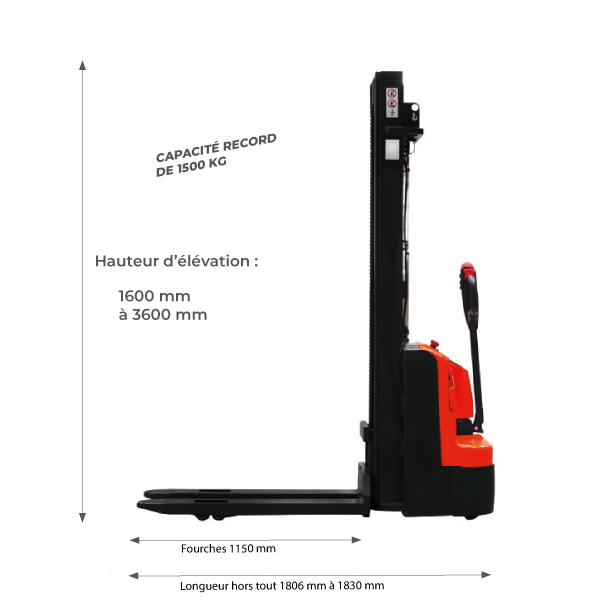

SECL15N is an economical electrical walkie stacker with a record capacity of 1500 kg for a compact model. Lifting height ranges between 1600 to 3600 mm.

more information

	Designation
	SECL1529N Electrical stacker 2900 mm 1500 kg load capacity Weight : 641 kg Bar code : 3700664803449 Catalogue P.100
	SECL1536N Electrical stacker 3600 mm 1500 kg load capacity Weight : 782 kg Bar code : 3700664803456 Catalogue P.100

DESCRIPTION

TECHNICAL CHARACTERISTICS

SECL1529N and SECL1536N are economical electrical stacker with a record capacity of 1500 kg.
Compact and lightweight, it suits all types of applications.
Powerful and efficient 48V stackers
Equipped with 4 semi-traction maintenance-free monobloc batteries (4 x 12V 60 Ah)
Four casters and a lateral handle provide excellent visibility, maneuverability and greater stability.
Robust and ergonomic handle, steel crankcase and plastic coating ensure reliability and comfort.

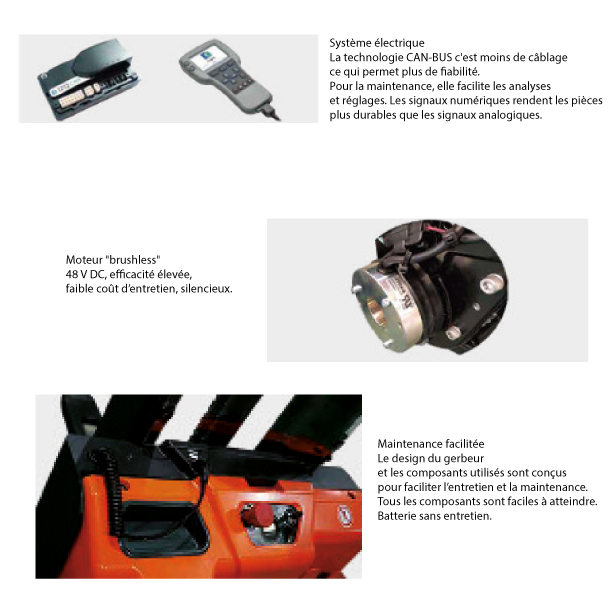

Equipped with premium materials and high-end technologies: Curtis, CAN-BUS, Intorq

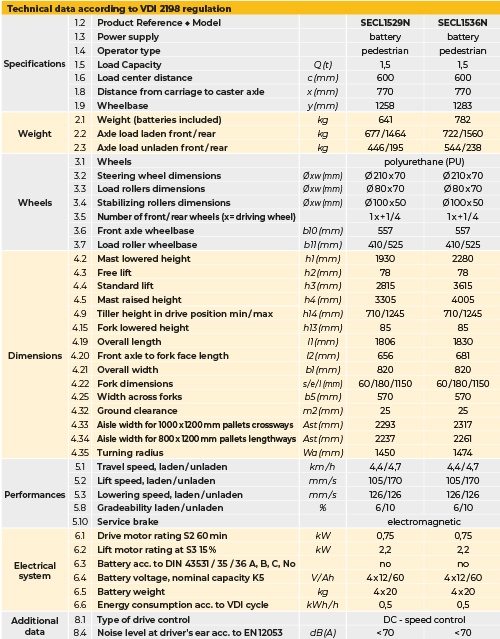

Rated capacity: 1.5 metric ton
Service weight: 641 kg (SECL1529N) and 782 kg (SECL1536N)
Polyurethane wheels
Steering wheels: Ø 210 x 73 mm
Front rollers: Ø 80 x 70 mm
Stabilizing rollers: Ø 100 x 50 mm
Number of front / rear wheels (x= steering wheel): 1 x + 1 / 4
Mast height lowered: 1930 mm (SECL1529N) or 2280 mm (SECL1536N)
Free lift: 78 mm (SECL1529N) and 78 mm (SECL1536N)
Standard lift: 2815 mm (SECL1529N) or 3615 mm (SECL1536N)
Extended mast height: 3305 mm (SECL1529N) or 4005 mm (SECL1536N)
Tiller height in drive position min. / max.: 710 mm / 1245 mm
Fork height lowered: 85 mm (SECL1529N) or 4005 mm (SECL1536N)
Overall length: 1806 mm (SECL1529N) or 1830 mm (SECL1536N)
Length without forks: 656 mm (SECL1529N) or 681 mm (SECL1536N)
Overall width: 820 mm
Fork dimensions s/e/l: 60/180/1150 mm
Width across forks: 570 mm
Ground clearance: 25 mm
Aisle width for pallets 1000 x 1200 crossways: 2293 mm (SECL1529N) and 2317 mm (SECL1536N)
Aisle width for pallets 800 x 1200 lengthways: 2237 mm (SECL1529N) and 2261 mm (SECL1536N)
Turning radius: 1450 mm (SECL1529N) and 1474 mm (SECL1536N)
Travel speed laden / unladen: 4,4 / 4,7 km/h
Gradeability performance of 6% laden and 10% unladen
Battery weight: 4 x 20 kg
Type of drive control: DC - speed control
Sound level at driver's ear acc. to EN 12053:<70 dB
Download the product specifications for further technical information
