PSE12N LI EDGE

Electrical lithium stacker with initial lift and 1200 kg load capacity

PSE12N LI EDGE

Electrical lithium stacker with initial lift and 1200 kg load capacity

The new electric stacker "EDGE" PSE12N LI combines perfectly the advantages of a manual compact stacker and the efficiency of an electric stacker. This model is equipped with initial lift system.

more information

	Designation
	PSE12N1600LI Electrical lithium stacker with 2600 mm initial lift and 1200 kg load capacity Weight : 555 kg Bar code : 3700664809052 Catalogue P.98-107
	PSE12N2600LI Electrical lithium stacker with 2600 mm initial lift and 1200 kg load capacity Weight : 0 kg Bar code : 3700664804941 Catalogue P.98-107
	PSE12N2900LI Electrical lithium stacker with initial lift 2900 mm 1200 kg load capacity Weight : 595 kg Bar code : 3700664803401 Catalogue P.98-107
	PSE12N3200LI Electrical lithium stacker with initial lift 3200 mm 1200 kg load capacity Weight : 615 kg Bar code : 3700664803418 Catalogue P.98-107
	PSE12N3600LI Electrical lithium stacker with initial lift 3600 mm 1200 kg load capacity Weight : 635 kg Bar code : 3700664803425 Catalogue P.98-107

DESCRIPTION

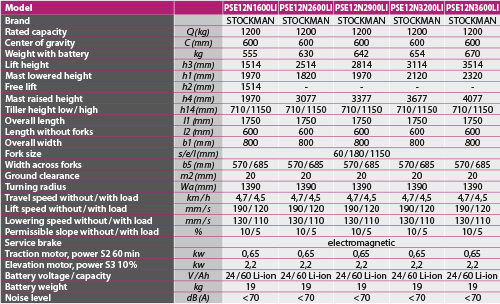

TECHNICAL CHARACTERISTICS

The PSE12N EDGE LI is the version with initial lift of PSE12N series.
This electrical lithium stacker is the most compact stacker on the market
iF Design Awards 2020 winner for its ergonomic design
This stacker is ideal for light to medium duty applications
It has a load capacity of 1.2 metric tons
It has a high residual load capacity: 1200kg to 2500 mm, 1000 kg to 2900 mm, 800 kg to 3200, 600 kg to 3600 mm
Equipped with a fast charging Li-ion battery and a 25 Ah built-in charger
Fitted with a steel cover and a robust chassis
Overall length of only 1710 mm
The handle has an air spring on the tiller bar to provide greater comfort and safety.
The central steering handle can be operated in vertical position for improved maneuverability in tight spaces without compromising safety.
A RFID card starts the stacker.
Slow speed mode (turtle mode) provides traveling speed control when turning for additional safety.
The "smart view" mast system enables the operator to see 60 % of the fork length providing a clear view.
Easy maintenance: Quick and easy access to any component. All elements are within easy reach. No special tool is needed.
Rated capacity: 1 metric ton
Service weight: 595 kg (PSE12N2900LI), 615 kg (PSE12N3200LI) or 635 kg (PSE12N3600LI)
Polyurethane wheels
Steering wheels: Ø 210 x 70 mm
Front rollers: Ø 84 x 93 mm
Stabilizing rollers: Ø 100 x 50 mm
Number of front / rear wheels (x= steering wheel): 1 x + 2/2
Mast height lowered: 1970 mm (PSE12N2900LI), 2120 mm (PSE12N3200LI) or 2320 mm (PSE12N3600LI)
Standard lift: 2814 mm (PSE12N2900LI), 3114 mm (PSE12N3200LI) or 3514 mm (PSE12N3600LI)
Initial lift: 120 mm for all 3 models
Extended mast height: 3377 mm (PSE12N2900LI), 3677 mm (PSE12N3200LI) or 4077 mm (PSE12N3600LI)
Tiller height in drive position min. / max.: 710 mm / 1150 mm
Fork height lowered: 86 mm
Overall length: 1750 mm for all 3 models
Length without forks: 600 mm for all 3 models
Overall width: 800 mm
Fork dimensions s/e/l: 60/180/1150 mm
Width across forks: 570 / 685 mm
Ground clearance: 20 mm
Aisle width for pallets 1000 x 1200 crossways: 2237mm
Aisle width for pallets 800 x 1200 lengthways: 2185 mm
Turning radius:1390 mm
Travel speed laden / unladen: 4,5 / 4,7 km/h
Battery weight: 19 kg
Type of drive control: DC - speed control
Sound level at driver's ear acc. to EN 12053:<70 dB
