PS16CB

Counterbalanced stand-up rider electric stacker with 1600 kg load capacity

PS16CB

Counterbalanced stand-up rider electric stacker with 1600 kg load capacity

The PS CB electric counterbalanced stacker series is ideal for applications where stacked loads on low and medium-height racks are limited to a few hours per day. This version of 1600 kg load capacity has 6 standard lift heights ranging from 1600 to 4000 mm.

more information

	Designation
	PS16CB1600 Counterbalanced stand-up rider electric stacker with 1600 mm standard lift 1600 kg load capacity Weight : 1970 kg Bar code : 3700664807355 Catalogue P.136
	PS16CB2500 Counterbalanced stand-up rider electric stacker with 2500 mm standard lift 1600 kg load capacity Weight : 2095 kg Bar code : 3700664807348 Catalogue P.136
	PS16CB3000 Counterbalanced stand-up rider electric stacker with 3000 mm standard lift 1600 kg load capacity Weight : 2135 kg Bar code : 3700664807331 Catalogue P.136
	PS16CB3200 Counterbalanced stand-up rider electric stacker with 3200 mm standard lift 1600 kg load capacity Weight : 2145 kg Bar code : 3700664807324 Catalogue P.136
	PS16CB3600 Counterbalanced stand-up rider electric stacker with 3600 mm standard lift 1600 kg load capacity Weight : 2170 kg Bar code : 3700664807317 Catalogue P.136
	PS16CB4000 Counterbalanced stand-up rider electric stacker with 4000 mm standard lift 1600 kg load capacity Weight : 2190 kg Bar code : 3700664807300 Catalogue P.136

DESCRIPTION

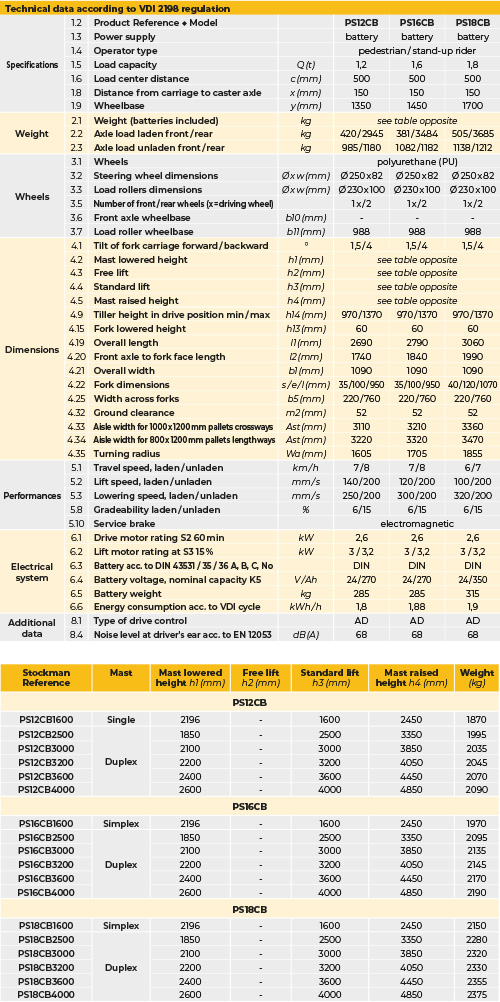

TECHNICAL CHARACTERISTICS

Without straddle legs, this counterbalanced stand-up rider electric stacker can perform applications that conventional stackers cannot, such as lifting closed pallets or skids with a bottom
The load capacity of this version is 1600 kg. Two other load capacities are available: 1200 kg for PS12CB and 1800 kg for PS18CB (see models pages for technical information)
The lifting capacity ranges between 1600 mm to 4000 mm
Thanks to its compact structure (short wheelbase and small turning radius), this electric stacker is ideally suited for narrow-aisle applications
It features high efficiency and a high driving speed: 7 km/h loaded, 8 km/h without load
Its overall structure optimization increases stability and safety
Lateral battery extraction ensures easy replacement
Proportional lift control ensures maximum precision to position the loads
This counterbalanced stand-up rider electric stacker is equipped with high-quality components
The powerful AC motor is designed and manufactured by Schabmüller
The gearbox is designed by Kordel
The German Rader Vogel high-end steering wheels guarantee an extended service life of the motor unit
Rema's ergonomic handle features a reliable control system
The integrated flip-down platform, the folding lateral protection arms, and the new internal structure provide the smallest overall length and tightest turning radius
The suspension system of the platform offers excellent comfort
The Electric Power Steering (EPS) allows precise and fast control of the steering wheel and ensures high efficiency and optimal safety
French HPI hydraulic system guarantees precision when raising or lowering the forks, plus a smooth acceleration or deceleration when handling fragile loads
Zapi, Italian electronic controllers offer a reliable and flexible high-performance solution
The multi-functional control panel can display the equipment's operational status, operating time, battery status, driving speed, and steering angle
The USB charging port can be used to power other devices
The mainframe thickness (8mm) guarantees the robustness of the stacker's chassis. In addition, the stainless steel battery cover provides enhanced protection
Standard PIN-code or RFID card access control system, available in option, considerably simplifies the access control process if more than one user uses the equipment
The stackers' mast tilt is standard
Download the product specifications for further technical information and our complete commercial brochure

Options

Lithium-ion battery
