PT20I800

Ergonomic trans-stacker with additional lift 2000 kg

PT20I800

Ergonomic trans-stacker with additional lift 2000 kg

The PT20l800 trans-stacker features an additional lift that makes it the ideal choice for handling and order picking. The operator can position the pallets at a comfortable working height to perform order picking and docking operations with ease.

more information

	Designation
	PT20I800 Ergonomic trans-stacker with additional lift 2000 kg Weight : 656 kg Bar code : 3700664835884 Catalogue P.54

DESCRIPTION

TECHNICAL CHARACTERISTICS

Compact but tough, this electric trans-stacker offers one of the best load capacities on the market: 2 metric tons on pallet truck mode or 1 metric ton at ground level plus 1 metric on second level when on stacker mode.
Equipped with an initial lift, its efficiency is increased by twofold compared to a common pedestrian powered pallet truck or stacker.
Lift / lower side buttons allow the operator to adjust pallet height without having to move around. Buttons can be used in turtle function for safe operations in tight spaces.
PT20I trans-stacker has a robust chassis and 8 mm thick mainframe that protects it from damage during intensive use in harsh environments.
Powerful AC Schabmümller motor provide maximum and smooth acceleration. The trans-stacker intelligent design protects the brakes and traction motor.
The hydraulic system remains static during lift and lower operations ensuring stability and safety.
The additional mast with loadback rest and a load capacity of 1000 kg goes up to 800 mm. It is the best solution to position the pallets at a correct working height to prevent operator from musculoskeletal disorders when performing order picking operations.
Straddle legs provide high ground clearance for increased travel safety on walkways, ramps and uneven floors. Visibility is increased due to its small overall height.
The heavy steel battery cover helps reduce maintenance costs and damages.
The dust and splash proof Zapi electronic controller gives the option to tailor the trans-stacker performance to suit individual user needs.
Rema's long ergonomic handle improves comfort and efficiency. It also guarantees the operator is at a safe distance from the trans-stacker during motion.
The electronically controlled proportional lift system ensures accurate fork positioning and stacking operations. Proportional lift provides maximized performance when masts heights are high.
Load capacity on stacker mode: 1 metric ton + 1 metric ton
Fork load capacity: 1 metric ton
Straddle legs load capacity / pallet truck mode: 2 metric tons
Service weight: 656 kg
Polyurethane wheels
Steering wheel dimensions: 230 mm diameter
Front roller dimensions: 80 mm diameter
Stabilizing rollers: 100 mm diameter
Number of front / rear wheels (x= steering wheel): 1 x + 2/4
Standard lift: 120 mm
Tiller height in drive position min. / max.: 1100 / 1400 mm
Mast height lowered: 950 mm
Standard lift: 550 mm
Extended mast height with/without backrest: 1717 mm / 950 mm
Initial lift: 120 mm
Tiller height in drive position min. / max.: 820 / 1335 mm
Fork height lowered: 88 mm
Overall length: 1770 mm
Length w/o forks: 620 mm
Overall width: 729 mm
Fork length:1150 mm
Width across forks: 560 mm
Aisle width for pallets 1000 x 1200 crossways: 1970 mm
Aisle width for pallets 800 x 1200 lengthways: 2020 mm
Turning radius: 1536 mm
Travel speed laden / unladen: 6 km/h both
Gradeability performance of 8 % laden and 20% unladen
Electromagnetic service brake
Sound level at driver's ear acc. to EN 12053: <69 dB

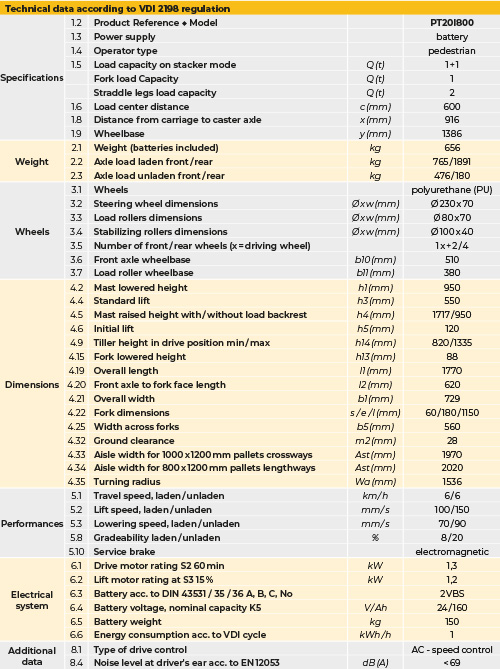

Download the product specifications for further technical information

Documentation

Data sheet
