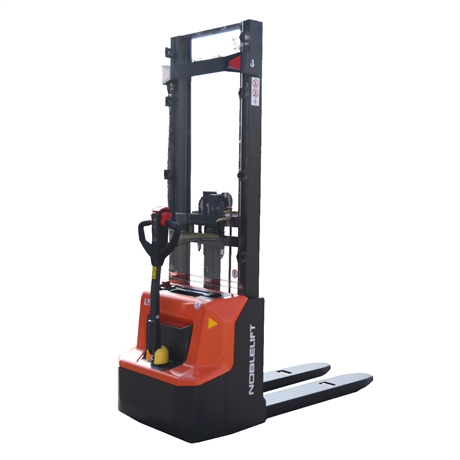

PSE13NPRO

Lithium electric stacker with 100 Ah battery and 1300 kg capacity

PSE13NPRO

Lithium electric stacker with 100 Ah battery and 1300 kg capacity

The new PSE13NPRO lithium electric stacker is at the cutting edge of innovation, and has all the features to become a must-have piece of equipment in the professional materials handling sector. This compact, high-performance, heavy-duty stacker is powered by a 100 Ah lithium-ion battery. It combines efficiency and maneuverability for a load capacity of 1300 kg. Available in two models / lift height: PSE13NPRO2600 and PSE13NPRO3600.

more information

	Designation
	PSE13NPRO2900 Lithium electric stacker with 2900 mm lift, 1300 kg capacity and 100 Ah battery Weight : 0 kg Bar code : 3700664812298 Catalogue P.639
	PSE13NPRO3600 Lithium electric stacker with 3600 mm lift, 1300 kg capacity and 100 Ah battery Weight : 0 kg Bar code : 3700664812304 Catalogue P.670

DESCRIPTION

TECHNICAL CHARACTERISTICS

The PSE13NPRO lithium electric stacker represents a major technological advance in professional materials handling. Designed for compactness, performance and intensive use, this model is equipped with a 100Ah lithium-ion battery. Thanks to its design and technical features, this electric stacker combines efficiency and maneuverability. Capable of lifting and moving loads of up to 1300 kg, it comes in two versions with different lifting heights: PSE13NPRO2600 and PSE13NPRO3600.

Advantages of the PSE13NPRO electric stacker
1300 kg load capacity: the PSE13NPRO electric stacker, with its 1300 kg load capacity, is ideally suited to the demands of intensive applications in warehouses, distribution centers and manufacturing industries. This capacity, coupled with a 100 Ah battery with 5-hour autonomy, enables operators to handle heavy loads efficiently, reducing the number of work interruptions and increasing productivity.
Two lift heights available: the PSE13NPRO is available in two versions, with lift heights of 2600 mm and 3600 mm. This electric stacker can therefore be adapted to the specific needs of different sectors. In warehouses and distribution centers, this lifting flexibility facilitates the storage and retrieval of pallets at various heights.
High residual capacities: the performance of the PSE13NPRO electric stacker is high. With its high residual capacities, this stacker is set to become a must-have for professional materials handling: 1200 kg at 2500 mm, 1000 kg at 2900 mm, 800 kg at 3200 mm, 600 kg at 3600 mm.
24V / 100Ah Li-ion battery: The lithium-ion battery ensures extended autonomy of 5 hours for long uninterrupted work cycles. This is essential for continuous operations in distribution centers and warehouses, for example, where downtime can be costly. What's more, Li-ion batteries last longer and require less maintenance than traditional batteries, reducing long-term operating costs.
Compact and lightweight: The compact, lightweight design of the PSE13NPRO stacker makes it ideal for use in restricted environments such as warehouses and retail outlets. Its maneuverability makes it easy to navigate narrow aisles. The risk of material damage is reduced, and operator safety is assured.
Exceptional maneuverability: Thanks to its ergonomic tiller that can be used vertically (90°) and its polyurethane wheels, the PSE13NPRO offers a smooth, safe ride. This feature is particularly beneficial in distribution centers, the transport sector and manufacturing industries, where operators often have to maneuver in confined spaces and handle a variety of loads.
BMS and CAN-BUS: The battery's BMS (Battery Managing System) monitors charging and discharging parameters, operating temperature and short-circuits. Communication with BMS and software settings is possible via CAN-BUS. The electrical system uses the CAN-BUS communication protocol, thus increasing system reliability. These two parameters ensure totally safe battery charging.
Smart View” mast: The ‘Smart View’ mast improves operator visibility, enabling him to see up to 60% of the fork length. This increased visibility is crucial to safe and efficient operations, particularly in warehouses and manufacturing industries where safe load handling is paramount. It's a popular design in retail and commercial environments, where it's vital for forklift operators to benefit from the best equipment in terms of visibility and safety.
PIN code / RFID start-up: Secure PIN code start-up or quick access via RFID card prevent unauthorized use, and are ideal for environments where several operators use the same equipment. This is the case in distribution centers and retail outlets. These features increase safety and enable equipment use to be tracked, for better management and maintenance of the electric stacker.
Integrated USB port: The integrated USB port offers added convenience for operators, enabling them to charge mobile devices directly on the stacker. This feature is useful in distribution centers and warehouses where operators spend long hours handling electric stackers and need to keep their personal or business devices charged and operational.
Hight free lift : the large free lift on an electric stacker refers to the ability of the stacker mast to rise without the mast extensions exceeding the height of the chassis. This lift enables the forks to be raised to a certain height without the mast extending vertically. This feature is very useful in height-restricted environments, such as warehouses with low ceilings or work areas with overhead obstacles. It also reduces the risk of tipping or instability, as the center of gravity remains low. Last but not least, the high free lift facilitates load handling without the need for a lot of vertical space. The high free lift is 1450 mm for the PSE13NPRO2600 and 1800 mm for the PSE13NPRO3600.
Proportional lift: This feature enables precise, effortless operation, particularly useful in confined spaces. Operators can adjust the lift proportionally, crucial for delicate goods handling in manufacturing industries where precision is essential. Operator safety is assured.

Main technical features of the PSE13NPRO lithium electric stacker
Propulsion and driving mode: the PSE13NPRO is a pedestrian electric stacker.
Load capacity and center of gravity: this electric stacker has a rated capacity of 1.3 tons, with a center of gravity of 600 mm.
Weightwith batteries: the lithium stacker weighs 639 kg (model PSE13NPRO2900) or 670 kg (model PSE13NPRO3600), battery included.
Wheel dimensions and type: the PSE13NPRO is equipped with polyurethane (PU) wheels with drive wheel dimensions Ø 210 x 75 mm and front rollers Ø 84 x 93 mm, for a smooth, durable ride on a variety of surfaces.
Lowered and extended mast height: model PSE13NPRO2900 has a lowered mast height of 1930 mm and an extended height of 3290 mm, while model PSE13NPRO3600 has a lowered height of 2280 mm and an extended height of 3990 mm.
Hight free lift and standard lift: with a large free lift of 1450 mm (PSE13NPRO2900) and 1800 mm (PSE13NPRO3600) and standard lift heights of 2810 mm (PSE13NPRO2900) and 3510 mm (PSE13NPRO3600), this stacker is designed for the most frequent operations in the professional handling sector.
Fork dimensions and ground clearance: the forks measure 60 mm (thickness) x 180 mm (width) x 1150 mm (length) with an external width of 570 mm and a ground clearance of 24 mm.
Travel and lift speeds: travel speed is 4.2 km/h with load and 4.5 km/h without, while lift speed is 100 mm/s with load and 140 mm/s without.
Turning radius: the 1300 mm turning radius offers excellent maneuverability, even in tight spaces in warehouses and storage areas.
Traction motor and lift motor: equipped with a 0.65 kW traction motor (S2 60 min) and a 2.2 kW lift motor (S3 10%), this stacker offers powerful, reliable performance for intensive handling tasks.
