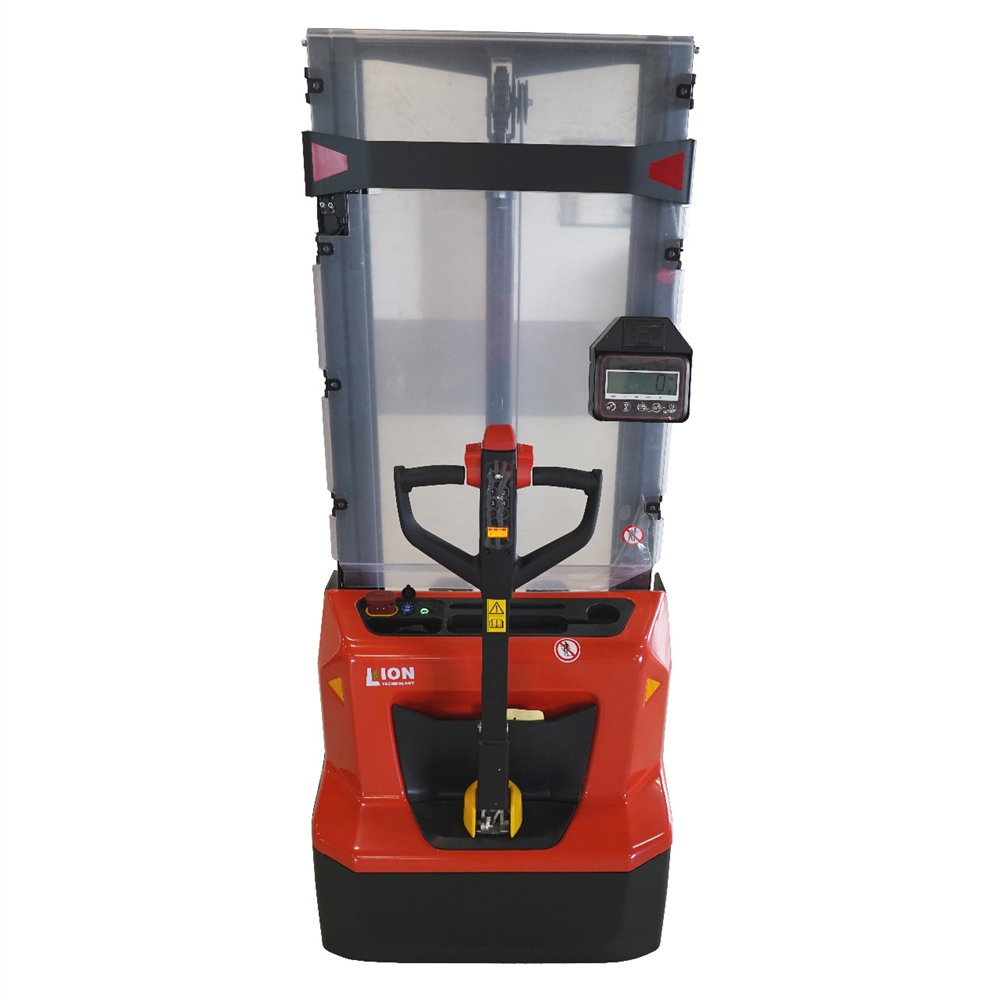

PSE12NSC

Lithium electric stacker with 0.2% precision weighing and 1200 kg capacity

PSE12NSC

Lithium electric stacker with 0.2% precision weighing and 1200 kg capacity

The PSE12NSC electric stacker is equipped with a weighing system with 0.2% accuracy and graduation in 500g steps. Available in 2 lift heights, 2900 mm and 3600 mm, the PSE12NSC stacker-weigher can lift, move and weigh loads of up to 1.2 tons.

more information

	Designation
	PSE12N2900SCIMP Lithium electric stacker with weighing system, accuracy 0.2%, lift 2900 mm, load 1200 kg Weight : 0 kg Bar code : 3700664812809 Catalogue P.580
	PSE12N3600SCIMP Lithium electric stacker with weighing system, accuracy 0.2%, lift 3600 mm, load 1200 kg Weight : 0 kg Bar code : 3700664812816 Catalogue P.620

DESCRIPTION

TECHNICAL CHARACTERISTICS

The best-selling PSE12N lithium electric stacker is now available with a weighing system.
With an accuracy of plus or minus 0.2%, this electric stacker is ideal for light to moderate applications.
Available in two lift heights 2900 and 3600 mm, the PSE12NSC weighing stacker is equipped with fast-charging lithium batteries and an integrated 25 Ah charger. It can lift and move loads of up to 1.2 tons.
Suitable for warehousing work in the logistics or industrial sectors, this lithium stacker saves time and is reliable, combining lifting and weighing, for receiving, checking goods and inventory management. The dimensions of the PSE12NSC Edge electric stacker make it the most compact stacker on the market
High residual capacities (CDG 600 mm): 1200kg at 2500 mm, 1000 kg at 2900 mm, 800 kg at 3200, 700 kg at 3600 mm
The hood is made of metal and the chassis is sturdy
The overall length is just 1710 mm
The ergonomic, intelligent tiller arm features a gas cylinder as standard and a battery discharge indicator
Ergonomically designed, the PSE12NSC's tiller arm won a design award at the iF Design Awards 2020
This tiller arm is central and can be handled in a vertical position, This makes it easier to work in confined areas without compromising safety
The PSE12NSC is equipped with an RFID access card to start up the stacker
To increase operating comfort and safety in trucks, the PSE12N Edge is equipped with an automatic speed reduction function when cornering
The “smart view” mast system enables the operator to see up to 60% of the forks' length, giving him a very wide range of visibility
Maintenance is made easy : quick, convenient access to any component of the stacker, with no parts located in hard-to-reach areas, and no need for special tools. Main technical features of the PSE12NSC stacker-weigher
Propulsion mode: electric (fast-charging lithium battery)
Rated capacity: 1.2 T
Driving style: companion
Weight with batteries: 580 kg (PSE12N2900SC) or 620 kg (PSE12N3600SC)
Wheels: polyurethane (PU: good grip and high durability, reduced vibration and noise when moving over various surfaces)
Fork dimensions: 60 / 180 / 1150 mm (suitable for handling standard pallets)
Standard lift: 2814 mm (PSE12N2900SC) or 3514 mm (PSE12N3600SC)
Deployed mast height: 3337 mm (PSE12N2900SC) or 4037 mm (PSE12N3600SC)
Battery voltage/rated capacity: 24V / 60Ah Li-ion (long autonomy and fast charging time for greater operational efficiency)
Travel speed with / without charge: 4.5 / 4.7 km/h Examples of applications for the PSE12NSC electric lithium stacker with weighing system:
Logistics and warehousing: managing the flow of goods requires maximum efficiency in loading, unloading, lifting and weighing to avoid delays. The PSE12NSC electric weighing stacker enables pallets to be lifted and weighed simultaneously. This reduces the time needed for warehousing, shelving, inventory or order picking in the flow of goods. Food industry: this sector requires high-precision weighing of materials and finished products, in compliance with quality standards and regulations. The PSE12NSC electric stacker's precision weighing system ensures that the weights of ingredients and finished products are accurate to 0.2% in 500g increments. Industrial production: subject to frequent handling of heavy, bulky parts, this sector is faced with regular interruptions to handling operations, as loads are weighed separately. The integrated weighing function of the PSE12NSC eliminates the need to move parts to a separate scale. This versatility makes for more efficient, uninterrupted working. Retail and distribution: this sector is punctuated by the need for efficient stock management in stores and warehouses, with seasonal peaks requiring fast, precise and safe handling. What's more, in-store stackers have to operate in small, busy spaces. The fast-charging lithium battery ensures continuous use and increased stacker availability, while the integrated weighing system optimizes stock management and enables precise real-time measurements. Finally, the stacker's dimensions make it the most compact on the market. Its design with central tiller arm and “smart view” mast ensures that operators can operate safely in tight spaces and with heavy loads.
