PSE15LC

Electrical stacker with 1500 kg load capacity

PSE15LC

Electrical stacker with 1500 kg load capacity

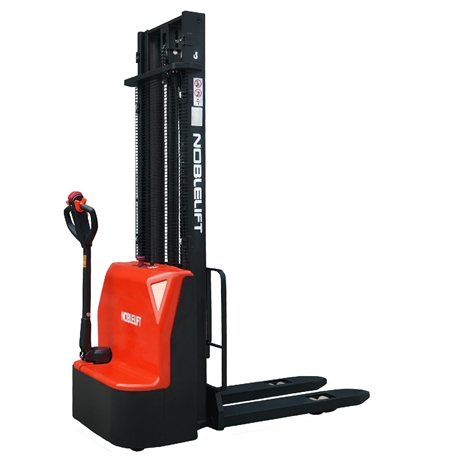

The PSE15LC electric stacker is an economical pedestrian electric stacker. With a capacity of 1500 kg, this AGM battery electric stacker can move and lift loads up to 2600 and 3600 mm.

more information

	Designation
	PSE15LC2900 Economical, compact and reliable electric stacker 1500 kg lift height 2900 mm Weight : 590 kg Bar code : 3700664813110
	PSE15LC3600 Economical, compact and reliable electric stacker 1500 kg lift height 3600 mm Weight : 750 kg Bar code : 3700664813127

DESCRIPTION

TECHNICAL CHARACTERISTICS

The PSE15LC electric stacker is designed for demanding handling operations, offering increased lifting capacity and technical features adapted to industrial environments. Available in two variants, PSE15LC2900 and PSE15LC3600, this model meets the need to handle loads of up to 1,500 kg, with two maximum lift heights of 2,963 mm and 3,513 mm. This electric stacker stands out for its sturdiness, ergonomics and ease of use.

Technical specifications and performance of the PSE15LC electric stacker
Load capacity: With a rated load capacity of 1,500 kg, the PSE15LC is ideally suited to heavy-duty handling applications, such as pallet handling of bulky goods or logistics warehouse operations.
Lift height: This model is available in two configurations: the PSE15LC2900 version offers a lift height of up to 2,963 mm, while the PSE15LC3600 variant reaches 3,513 mm, facilitating access to the highest shelving.
Maneuverability: Despite its performance, the PSE15LC remains compact, with an overall length of 1,779 mm and a width of 820 mm, enabling easy handling in confined spaces. Its radius of gyration of 1,481 mm ensures excellent maneuverability in narrow aisles.
Operating speed: The stacker can reach a travel speed of 4.4 km/h unladen and 4.0 km/h laden.
Lifting and lowering speeds are 148 mm/s and 125 mm/s respectively, unladen, guaranteeing optimum productivity.

Key features and benefits of the PSE15LC electric stacker
Optimized stability and safety: The PSE15LC is designed with an ergonomic side tiller and rests on four wheels for enhanced stability. This design ensures better weight distribution and reduces the risk of tipping over when handling heavy loads.
Electromagnetic braking system: The electromagnetic service brake ensures optimum safety, allowing the stacker to be stopped quickly and safely in any situation.
Integrated charger and long-life batteries: The stacker is equipped with an integrated charger, making it easy to recharge the batteries on site. VRLA-AGM 2 x 12 V 100 Ah maintenance-free batteries ensure extended autonomy and longer service life, thanks to a discharge indicator and automatic cut-off system to prevent deep discharges.
Waterproof components for versatile use: All essential components, such as sensors, micro-switches, drive and motor, are protected against dust and moisture, ensuring reliable operation even in difficult conditions.

Ideal applications for the PSE15LC electric stacker

The PSE15LC lends itself to a wide range of applications, particularly in environments requiring intensive lifting and handling operations:
Logistics warehouses and distribution centers: The PSE15LC electric stacker is ideal for storing and moving pallets of heavy products, facilitating stock organization and racking access.
Industrial production sites: Adapted to production lines, this stacker enables materials or finished products to be transported safely from one station to another, improving operational efficiency.
Wholesale and retail trade: Companies with large storage areas, such as DIY stores or wholesalers, can benefit from the PSE15LC's high lift capacity to manage inventory with ease.

Ergonomic design and easy maintenance of the PSE15LC electric stacker
Ergonomic, robust tiller arm: The tiller arm is designed for maximum operating comfort, with intuitive, accessible controls. The plastic coating and steel housing guarantee optimum robustness for intensive use.
Easy access to components: The PSE15LC allows easy access to various components for servicing, reducing downtime and maintenance costs.

PSE15LC electric stacker complies with safety standards

The PSE15LC electric stacker complies with European safety standards, including ISO 13 849, and is equipped with a watertight emergency stop switch, guaranteeing maximum operator safety.

Why choose the PSE15LC electric stacker?

The PSE15LC is a robust, high-performance handling solution, designed for companies with high demands in terms of lifting and transporting heavy loads. Thanks to its advanced technical features, such as sealed components, electromagnetic braking and integrated charger, it offers an excellent compromise between performance, safety and ease of use.

With the PSE15LC electric stacker, you're choosing reliable, durable equipment capable of meeting the demands of the most demanding industrial environments. This stacker stands out for its ability to improve operational efficiency while guaranteeing user safety, making it a first-rate choice for heavy handling applications.
