PSE12B

Electric stacker with 1200 kg load capacity and lead-acid battery

PSE12B

Electric stacker with 1200 kg load capacity and lead-acid battery

The PSE12B electric stacker is the perfect combination of the compactness of a manual stacker and the efficiency of an electric stacker. It can lift loads of up to 1.2 tons at heights ranging from 2900 to 3600 mm, depending on the model chosen.

more information

	Designation

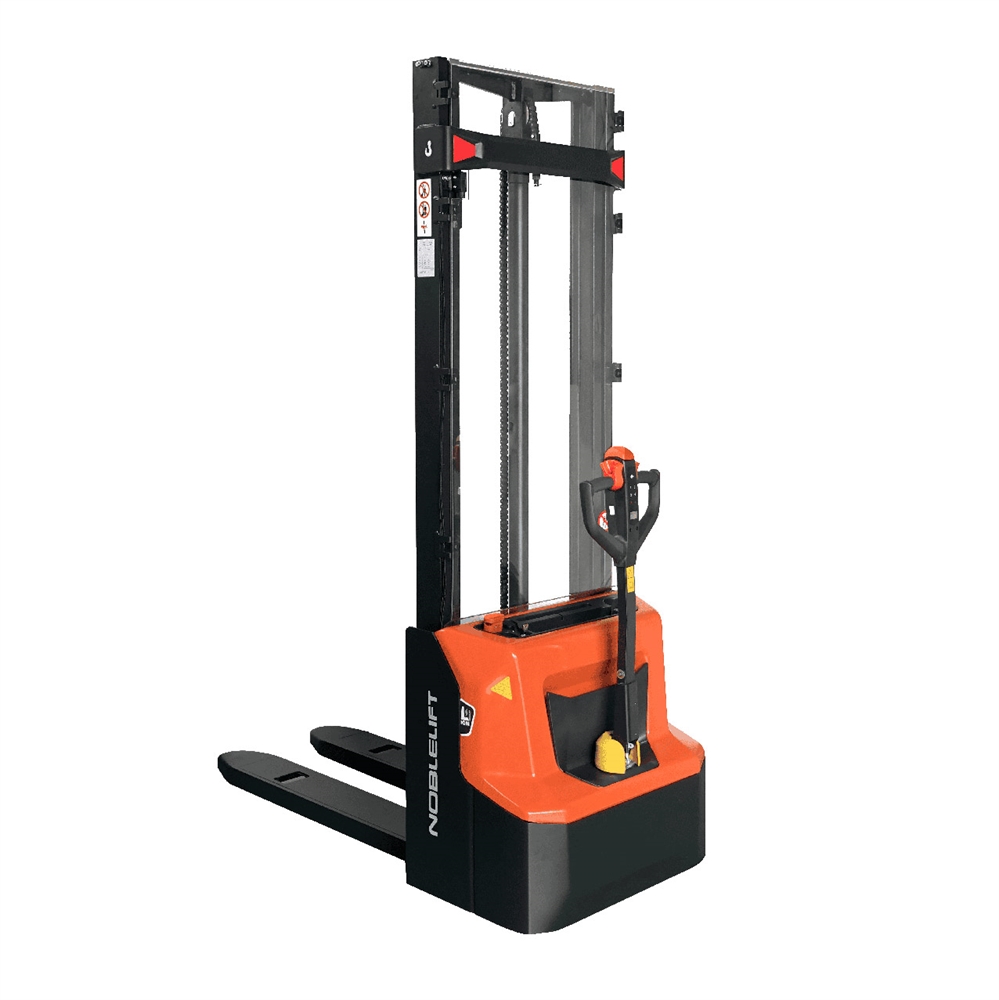

	PSE12B2900 Gerbeur électrique 1200 kg élévation 2900 mm et batterie plomb Weight : 625 kg Bar code : 3700664810072
	PSE12B3600 Gerbeur électrique 1200 kg élévation 3600 mm et batterie plomb Weight : 665 kg Bar code : 3700664810096

DESCRIPTION

TECHNICAL CHARACTERISTICS

It's the same stacker as the PSE12N EDGE, but with a lead-acid battery.1.2 ton capacity
Perfect for light to moderate applications
Compact, lightweight and maneuverable
Lead-acid batteries
Integrated 25 Ah charger
RFID access card
Ergonomic, intelligent central tiller
"smart view" mast allows the operator to see up to 60% of the forks' length, giving him a very wide range of visibility. Easy-to-handle electric forklift: the tiller is fitted with a gas-operated cylinder as standard. To enhance operating comfort and safety on trucks, the PSE12B is equipped with an automatic speed reduction function when cornering.
Vertical tiller: driving with the tiller in the vertical position makes it easier to work in confined areas without compromising safety.
RFID access card offers faster access to equipment and is ideal for applications where a stacker needs to be used by different operators. Robust chassis with innovative design
The main hood is made of 1.5 mm-thick steel.
The drawbar's robustness is due to the fact that it is made of 65% fiberglass.
Much more compact than the manual and semi-electric products traditionally used in trucks, without sacrificing stability, robustness, safety and operating comfort.
Rugged forks: the thickness of the steel used, the design and fully automated manufacture of the forks, and the fact that the forks are made of stainless steel, make them ideal for use in confined areas, without compromising safety.
Rugged forks: the thickness of the steel used, the design and fully automated manufacture of the forks, make them ideal for use in confined areas, without compromising stability, robustness, safety and operating comfort.

Documentation

Data sheet

Electric stacker with 1200 kg load capacity and lead-acid battery

Electric stacker with 1200 kg load capacity and lead-acid battery

Documentation
