PSE10LC

Economical, compact and reliable 1000 kg electric stacker

PSE10LC

Economical, compact and reliable 1000 kg electric stacker

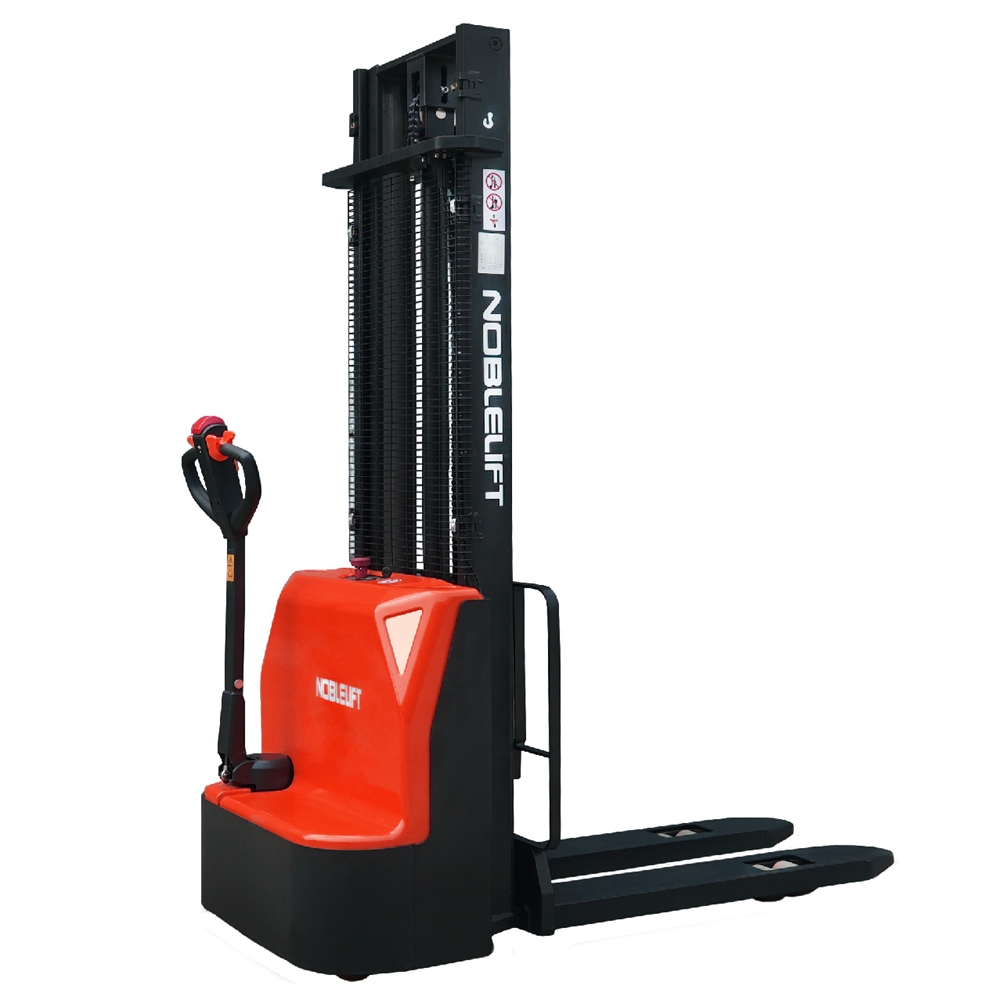

The PSE10LC electric stacker is an economical pedestrian electric stacker. With a capacity of 1000 kg, this AGM battery electric stacker can move and lift loads up to 2600 and 3600 mm.

more information

	Designation
	PSE10LC2900 Economical, compact and reliable electric stacker 1000 kg lift height 2900 mm Weight : 450 kg Bar code : 3700664813097
	PSE10LC3600 Economical, compact and reliable electric stacker 1000 kg lift height 3600 mm Weight : 570 kg Bar code : 3700664813103

DESCRIPTION

TECHNICAL CHARACTERISTICS

The PSE10LC electric stacker is a versatile piece of equipment designed to meet the needs of companies looking for an economical, compact and reliable solution for handling loads weighing up to 1000 kg. Available in two models, PSE10LC2900 and PSE10LC3600, it stands out for its robustness, technical performance and ergonomics. This electric stacker offers excellent value for money for occasional stacking operations.

Technical specifications and performance of the PSE10LC electric stacker
Load capacity: The PSE10LC supports a maximum load of 1000 kg, making it ideal for moving pallets in industrial environments, warehouses and stores.
Lift height: This model is available in two lift heights. The PSE10LC2900 model lifts loads up to 2,813 mm, while the PSE10LC3600 version reaches a lift height of 3,413 mm, for efficient stacking on shelving at different levels.
Compact dimensions: With an overall length of 1,750 mm and a width of 820 mm, the PSE10LC is designed to navigate easily in tight spaces.
Speed and control: The electric stacker has a travel speed of 4.3 km/h unladen and 4.0 km/h laden, and a lifting speed of 195 mm/s unladen, ensuring optimum productivity. Electromagnetic braking ensures maximum safety during operation.

Advantages and innovative technical features of the PSE10LC electric stacker
Enhanced stability and safety: Equipped with an ergonomic side-mounted tiller, the PSE10LC guarantees excellent visibility during stacking operations. Its four-point design offers enhanced stability, even when moving heavy loads. This reduces the risk of tipping.
Integrated charger: For added convenience, the stacker is supplied with an integrated charger, enabling batteries to be recharged directly from any standard electrical outlet, without the need for a dedicated recharging station.
Powerful, long-lasting batteries: maintenance-free AGM batteries (2 x 12V 80 Ah) ensure long service life and optimized recharging cycles. A discharge indicator and automatic cut-off system protect the battery from deep discharge, prolonging its life.
Waterproof components for use in demanding environments: The PSE10LC electric stacker is designed with sealed components, such as sensors, micro-switches, drive and motor, ensuring reliable performance even in dusty or damp environments.

PSE10LC electric stacker applications and scenarios

The PSE10LC electric stacker is designed for a wide range of applications, and is particularly suited to light to medium-duty handling operations:
Logistics and warehouse companies: Thanks to its compactness and lifting capacity, the PSE10LC is ideal for storing products on pallets in storage areas and loading bays.
Stores and sales areas: For retail outlets and superstores, this stacker makes it easy to move pallets of products and store them at different heights, facilitating shelf replenishment.
Light industry: manufacturing workshops, light industry or production sites can use it to move raw materials or finished products safely.

Ergonomic design and easy maintenance of the PSE10LC electric stacker
Sturdy, comfortable tiller arm: The PSE10LC's tiller arm is designed for easy, comfortable handling, with a plastic coating and steel housing for added strength. It allows the operator to control all lift and travel functions from intuitive controls.
Easy access for maintenance: Easy access to internal components reduces the time needed for maintenance, minimizing downtime and improving machine availability.

Standards and safety of the PS10LC electric stacker

The PSE10LC stacker complies with European safety standards, notably ISO 13 849. It is also equipped with a waterproof emergency stop switch, guaranteeing operator safety in critical situations.

Why choose the PSE10LC electric stacker?

The PSE10LC is the perfect solution for companies looking to improve handling efficiency while reducing costs. Its compact design, reliable performance and safety features make it a top choice for occasional stacking operations. Add to this ease of use and maintenance, and you have a stacker capable of meeting the most varied requirements on the market. When you choose the PSE10LC electric stacker, you're choosing versatile, durable, safety-compliant equipment suitable for a wide range of applications in industrial and commercial environments.
