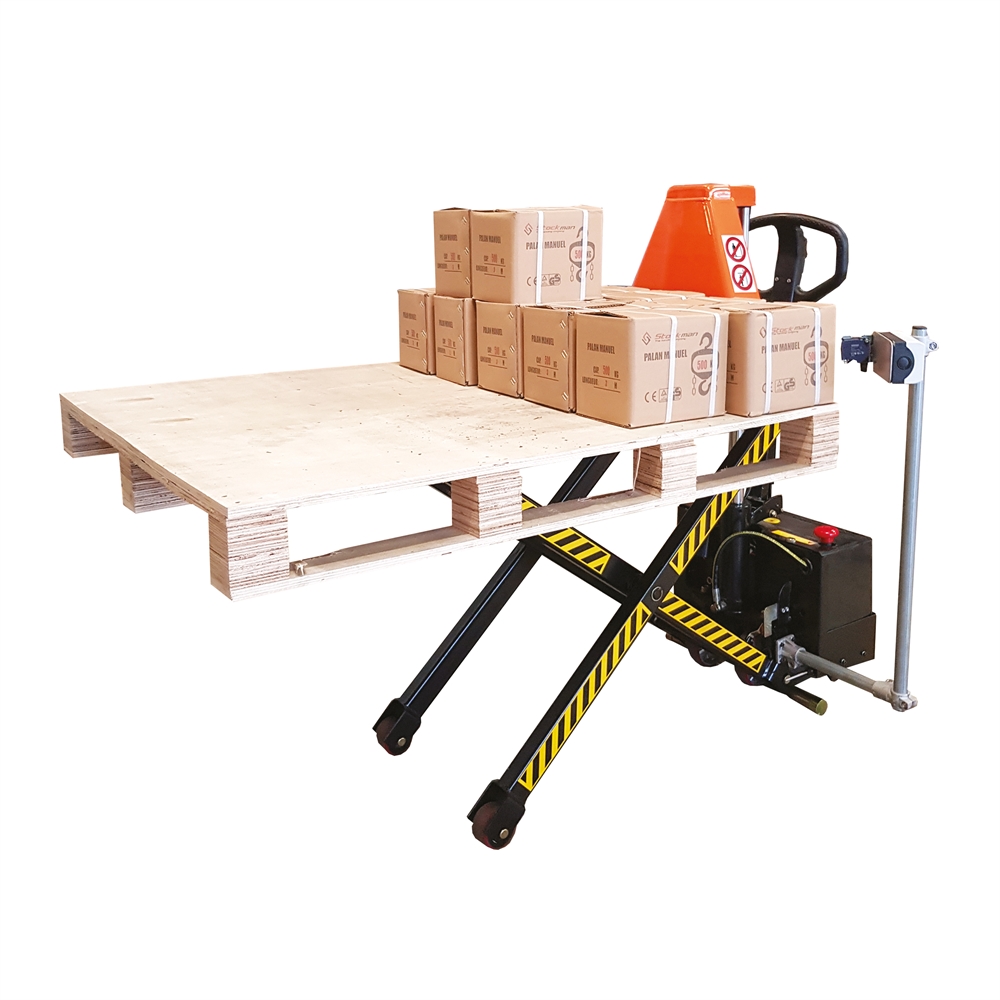

Electric scissor lift pallet truck 1000 and 1500 kg

This scissor lift pallet truck features an electrical lift and lowering system. Auto-levelling photo-sensor is available in option. It is rated with a load capacity of 1 or 1.5 ton depending on the model.

more information

	Designation
	JE5210 Electric scissor lift pallet truck 1 Ton 1140 mm / 520 mm - handle not mounted when ordering more than 2 units Weight : 140 kg Bar code : 3700664816074 Catalogue P.127
	JE5210/1500 Electric scissor lift pallet truck 1 Ton 1500 mm long Weight : 175 kg Bar code : 3700664815862
	JE5210/1800 Electric scissor lift pallet truck 1 Ton 1800 mm long Weight : 275 kg Bar code : 3700664815855 Catalogue P.127
	JE5210/2000 Electric scissor lift pallet truck 1 Ton 2000 mm long Weight : 298 kg Bar code : 3700664815848
	JE5215 Electric scissor lift pallet truck 1.5 Ton 1100 mm / 520 mm Weight : 149 kg Bar code : 3700664815831 Catalogue P.127
	JE6810 Electric scissor lift pallet truck 1 Ton 1140 mm / 680 mm Weight : 147 kg Bar code : 3700664815817 Catalogue P.127
	JE6815 Electric scissor lift pallet truck 1.5 Ton 1100 mm / 680 mm Weight : 157 kg Bar code : 3700664815794 Catalogue P.127

DESCRIPTION

TECHNICAL CHARACTERISTICS

This electric scissor lift pallet truck has an excellent stability for fast and effortless load transport and lifting (up to 1 metric ton and 800 mm height)
Reliable and high quality performance equipment available in 4 models
Maintenance-free battery for convenient use
Ergonomic handle
German pump seals
Low-profile frame
Double cylinder
External charger
Fork length: 1100 or 1140 mm
Fork width: 520 or 680 mm
Lifting speed with 800 kg load: 18 seconds
Lowering speed with 800 kg load: 12 seconds
Weight: 140 kg
Download the product specifications for further technical information

Options

Auto-levelling photo-sensor
1500, 1800 or 2000 mm fork lengths available in option for JE5210 (please contact us)
