Low-profile electric lift table 1000 to 2000 kg

HY

Low-profile electric lift table 1000 to 2000 kg

This superlow lifting table help to prevent musculoskeletal disorders (MSDs). Find the demo video of this equipment there below. Available in 10 models with different capacities.

more information

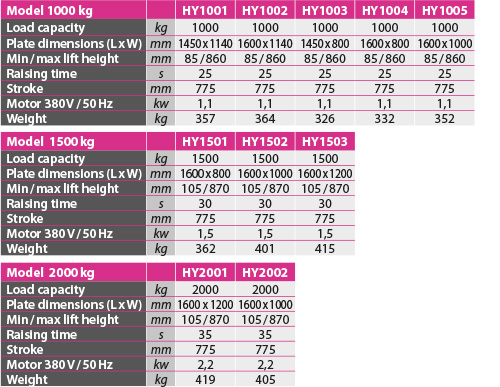

Designation
HY1001/220V - Low-profile electric lift table 1000 kg platform dimensions 1450 x 1140 mm 220 Volts HY1001/220V
Low-profile electric lift table 1000 kg platform dimensions 1450 x 1140 mm 220 Volts

Weight : 357 kg
Bar code : 3700664816920
Catalogue P.309
HY1001/380V - Low-profile electric lift table 1000 kg platform dimensions 1450 x 1140 mm 380 Volts HY1001/380V
Low-profile electric lift table 1000 kg platform dimensions 1450 x 1140 mm 380 Volts

Weight : 357 kg
Bar code : 3700664816913
Catalogue P.309
HY1002/380V - Low-profile electric lift table 1000 kg platform dimensions 1600 x 1140 mm HY1002/380V
Low-profile electric lift table 1000 kg platform dimensions 1600 x 1140 mm

Weight : 364 kg
Bar code : 3700664816883
Catalogue P.309
HY1003/220V - Low-profile electric lift table 1000 kg platform dimensions 1450 x 800 mm 220 Volts HY1003/220V
Low-profile electric lift table 1000 kg platform dimensions 1450 x 800 mm 220 Volts

Weight : 326 kg
Bar code : 3700664816845
Catalogue P.309
HY1003/380V - Low-profile electric lift table 1000 kg platform dimensions 1450 x 800 mm 380 Volts HY1003/380V
Low-profile electric lift table 1000 kg platform dimensions 1450 x 800 mm 380 Volts

Weight : 326 kg
Bar code : 3700664816838
Catalogue P.309
HY1004/380V - Low-profile electric lift table 1000 kg platform dimensions 1600 x 800 mm HY1004/380V
Low-profile electric lift table 1000 kg platform dimensions 1600 x 800 mm

Weight : 332 kg
Bar code : 3700664816821
Catalogue P.309
HY1005/380V - Low-profile electric lift table 1000 kg platform dimensions 1600 x 1000 mm HY1005/380V
Low-profile electric lift table 1000 kg platform dimensions 1600 x 1000 mm

Weight : 352 kg
Bar code : 3700664816807
Catalogue P.309
HY1501/380V - Low-profile electric lift table 1500 kg platform dimensions 1600 x 800 mm HY1501/380V
Low-profile electric lift table 1500 kg platform dimensions 1600 x 800 mm

Weight : 362 kg
Bar code : 3700664816784
Catalogue P.309
HY1502/380V - Low-profile electric lift table 1500 kg platform dimensions 1600 x 1000 mm HY1502/380V
Low-profile electric lift table 1500 kg platform dimensions 1600 x 1000 mm

Weight : 401 kg
Bar code : 3700664816777
Catalogue P.309
HY1503/380V - Low-profile electric lift table 1500 kg platform dimensions 1600 x 1200 mm HY1503/380V
Low-profile electric lift table 1500 kg platform dimensions 1600 x 1200 mm

Weight : 415 kg
Bar code : 3700664816760
Catalogue P.309
HY2001/380V - Low-profile electric lift table 2000 kg platform dimensions 1600 x 1200 mm HY2001/380V
Low-profile electric lift table 2000 kg platform dimensions 1600 x 1200 mm

Weight : 419 kg
Bar code : 3700664816500
Catalogue P.309
HY2002/380V - Low-profile electric lift table 2000 kg platform dimensions 1600 x 1000 mm HY2002/380V
Low-profile electric lift table 2000 kg platform dimensions 1600 x 1000 mm

Weight : 405 kg
Bar code : 3700664816487
Catalogue P.309

  • Premium low-profile electric lift table with a capacity of 1 to 2 metric tons
  • Ten models available with different capacities and dimensions
  • Excellent overall robustness
  • Fitted with high-end components
  • Bucher hydraulic electro-pump
  • Safety clearance to prevent trapping during operation
  • Self-lubricated rollers and bushings
  • Equipped with a hose burst valve to stop the lift table in the event of hydraulic hose failure
  • 24 V control voltage, push-button handle controller and dead man switch
  • Safety trip bars
  • Upper travel limit switch
  • Hand controller with 3m cable
  • Download the product specifications for further technical information
  • Watch this product demo video on our YouTube channel

Options

  • Position control system (please specify the adjustment range desired when ordering)
  • 220V single-phase

Documentation

Data sheet New products
