Endless wire rope winch 800 to 3200 kg

The advantage of this endless wire rope winch is that it can be used horizontally, vertically or diagonally. It includes a 20-meter wire rope equipped with a hook and is available in three load capacities: 800, 1600 or 3200 kg.

more information

	Designation
	GP08 Endless wire rope winch 800 kg Weight : 6 kg Bar code : 3700664880914 Catalogue P.238
	GP16 Endless wire rope winch 1600 kg Weight : 12 kg Bar code : 3700664880792 Catalogue P.238
	GP32 Endless wire rope winch 3200 kg Weight : 22 kg Bar code : 3700664880754 Catalogue P.238

DESCRIPTION

TECHNICAL CHARACTERISTICS

Endless wire rope winch with a load capacity of 800, 1600 or 3200 kg depending on the model chosen
Can be used horizontally, vertically or diagonally
Safeguard shear pin release beyond 15% overload
Die cast aluminium frame. GP16 and GP32 models feature a carrying handle
Includes a 20-meter wire rope equipped with a hook

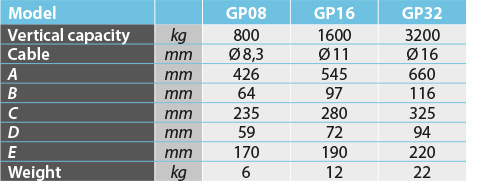

Download the product specifications for further technical information

Documentation

Data sheet
