PTE20N

Lithium powered pallet truck 2000 kg

PTE20N

Lithium powered pallet truck 2000 kg

PTE20N has the same characteristics as PTE15N but with a superior load capacity of up to 2 tons. This electric pallet truck is also exclusively distributed by STOCKMAN.

more information
Designation
PTE20N - Lithium powered pallet truck 2000 kg 1150 mm / 540 mm PTE20N
Lithium powered pallet truck 2000 kg 1150 mm / 540 mm

Weight : 149 kg
Bar code : 3700664835730
Catalogue P.141
PTE20NL - Lithium powered pallet truck 2000 kg 1150 mm / 685 mm PTE20NL
Lithium powered pallet truck 2000 kg 1150 mm / 685 mm

Weight : 153 kg
Bar code : 3700664803999
Catalogue P.141
PTE20N-1800 - Lithium powered pallet truck 1500 kg 1800 mm / 540 mm PTE20N-1800
Lithium powered pallet truck 1500 kg 1800 mm / 540 mm

Weight : 177 kg
Bar code : 3700664811031
Catalogue P.141
PTE20N-2000 - Lithium powered pallet truck 1200 kg 2000 mm / 540 mm PTE20N-2000
Lithium powered pallet truck 1200 kg 2000 mm / 540 mm

Weight : 200 kg
Bar code : 3700664811048
Catalogue P.141
508537010000 - Lithium battery 48V/20 Ah PTE15N 508537010000Accessory
Lithium battery 48V/20 Ah PTE15N

Weight : 4.6 kg
Bar code : 3700664809434
Catalogue P.141

  • PTE20N “EDGE” is the 2 metric ton version of PTE15N
  • This electric pallet truck series is the lithium-ion electric pallet truck market leader
  • With more than 1500 sales in 2019, the 1.5 ton version is our top selling electric pallet truck
  • PTE20N is available with 2 forks width: 540 mm or 680 mm
  • Compact, robust, lightweight and innovant design
  • Electric walkie pallet truck
  • Features an ergonomic handle with LCD display and PIN-code start-up
  • Equipped with an air spring on the tiller bar to ensure a smooth control
  • Slow speed mode (turtle mode) offers a traveling speed control when turning guaranteeing additional safety
  • Very functional electrical pallet truck
  • Forks dimensions: 47 / 160 / 1150 mm
  • Ground clearance: 33 mm
  • Turning radius: 1336 mm
  • Total weight: 149 or 153 kg (including the battery) depending on the model
  • Maintenance-free 48 V / 20 Ah lithium-ion battery comes standard
  • Easy access battery (simple installation and replacement)
  • The battery has been specially designed to withstand a 1.5 m drop and to recharge in 2.5 hours
  • Comes standard with stabilizing rollers
  • Curtis controllers and throttle, CAN-BUS technology
  • Steering handle in vertical position
  • Travel speed with / without load: 4.8 / 5.2 Km/ h
  • Gradeability with / without load: 7 /16 %
  • The color of the chassis can be customized
  • PTE20N helps reduce work-related musculoskeletal disorders (MSD)

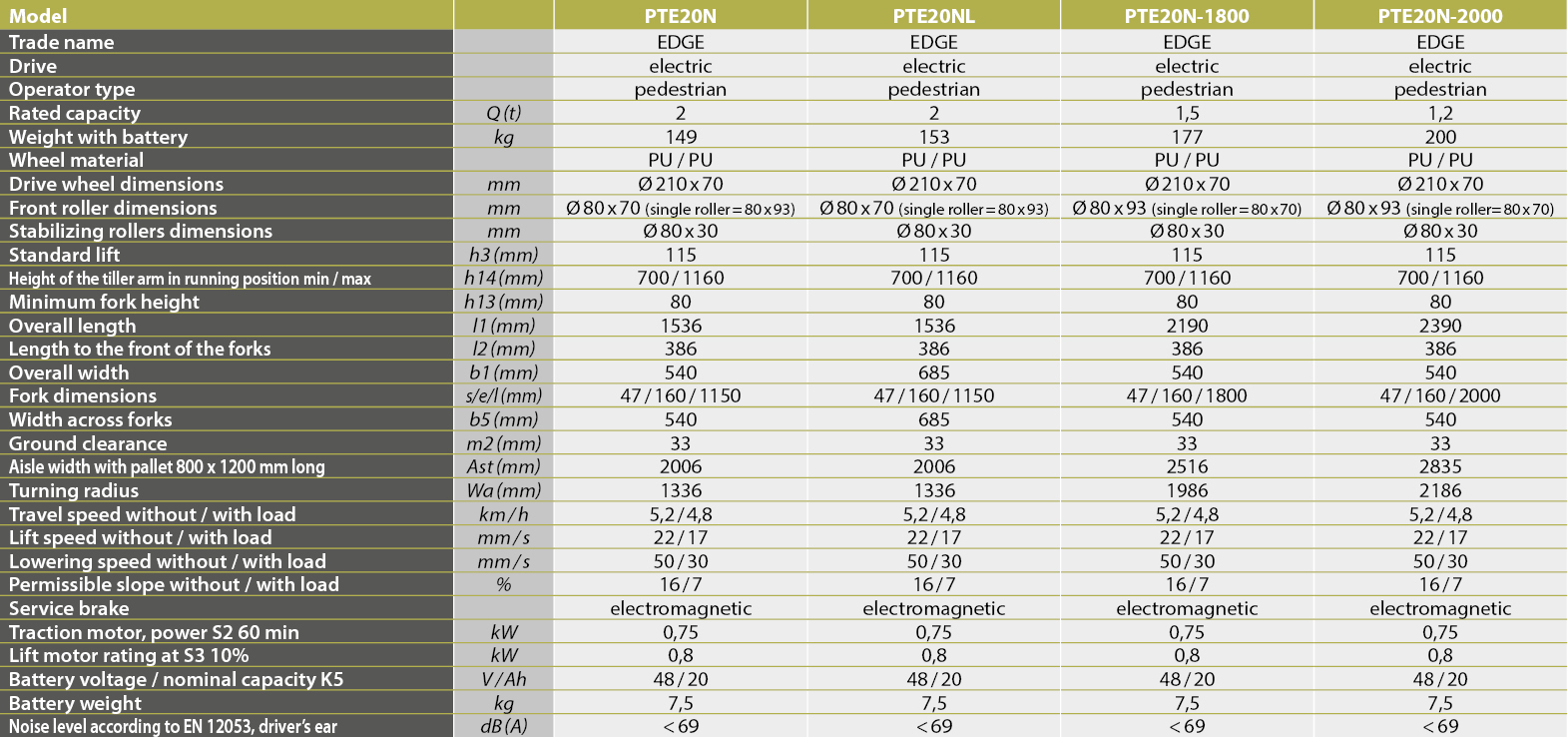

  • Download the product specifications for further technical information and our complete commercial brochure
  • Watch this product demo video on our YouTube channel

Options

  • Extra battery (48v / 20 Ah)
  • Belt wheels
